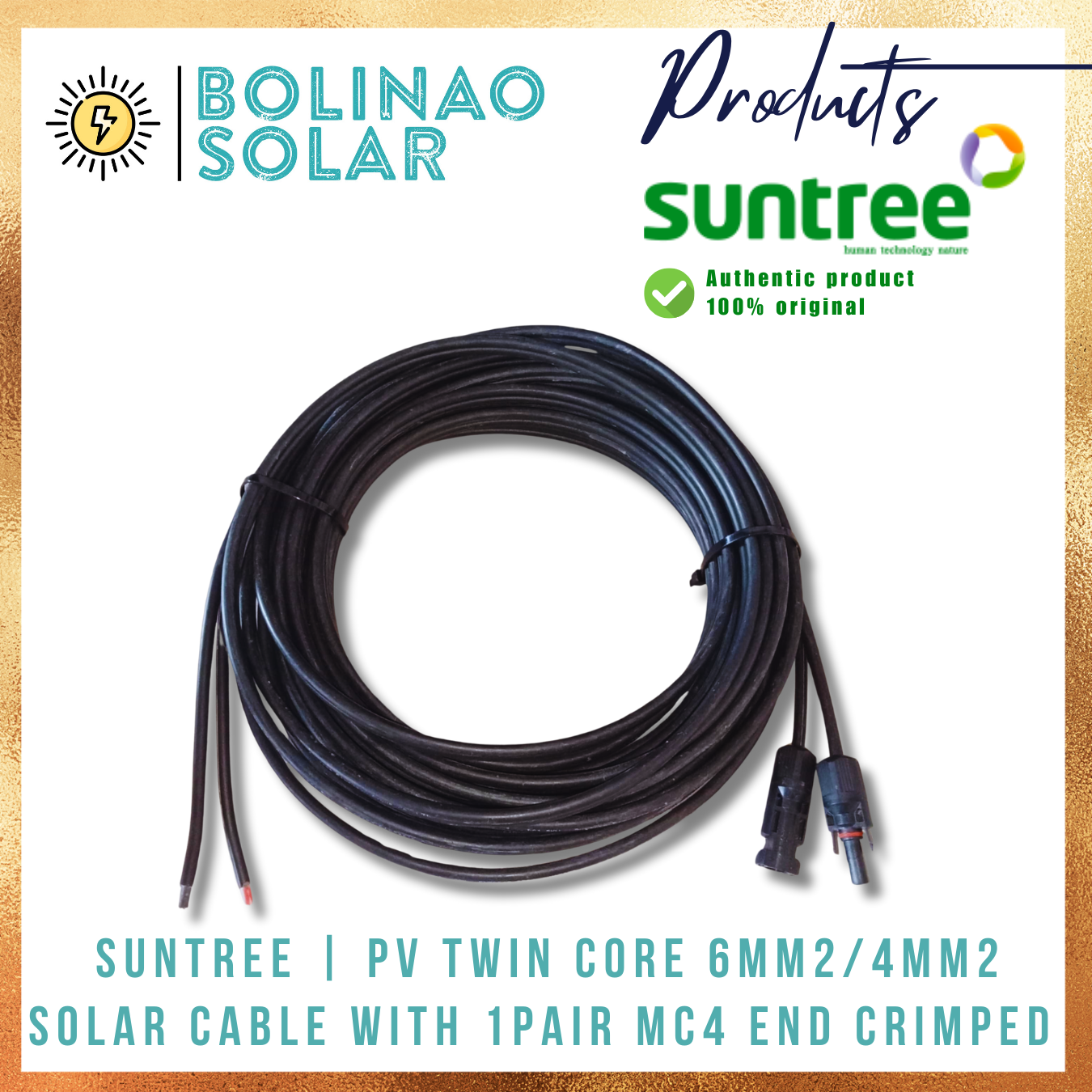

Suntree | PV Twin Core 6mm2/4mm2 Solar Cable with 1pair MC4 End Crimped (5m/10m/15m/20m)

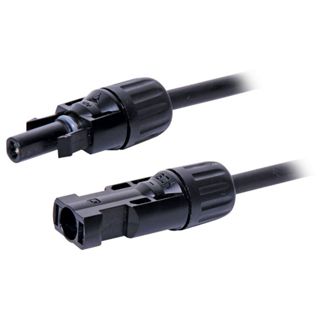

PV Twin Core 6mm2/4mm2 Solar Cable with 1pair MC4 End Crimped ready to use

Order Selection:

5meters

10meters

15meters

20meters

Electrical Technical Reference

Technical Indicators

Nominal voltage: U0/U 0.6/1KV(AC)1800DC(non-load)

Test voltage: AC6.5KV/5min(20°±0.5) or DC15KV/5min(20°C±0.5) without breakdown

Ambient temperature: -40℃~+90℃

Conductor maximum temperature 120℃

Maximum short circuit temperature: ≤250℃/5s

Expected service life: 25 years

Bending radius: ≥4D

STRUCTURE

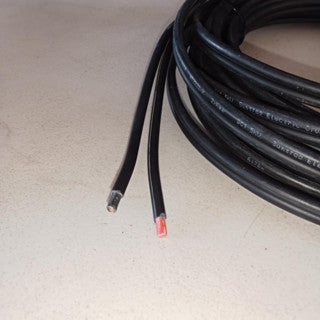

conductor: Tinned copper flexible conductor of Class 5 in 2Pfg1169

insulation: LSZH electron-beam cross-linked Polyolefin(125℃)

sheath: LSZH electron-beam cross-linked Polyolefin(125℃)

color: red or black

CHARACTERISTICS COMPLIANCE

Fire-resistance: EN 60332-1-2

Acid and alkali solution: EN 60811-2-1

Halogen determination: EN 50267/EN 60684

Weather resistance/UV resistance: HD 605/A1

Compliance certification: ROHS TUV

Executive standard: 2 Pfg 1169/08.2007

Structural dimensions and parameters

Model

PV1-F

Important Notes:

1. No cancellation once the order is already processed;

2. Choose the correct variation if the items have different sizes so we can avoid mistakes;

3. No rush orders please!

4. Message us for any concerns;

5. Please understand that we are NOT LIABLE and NOT IN CONTROL for delayed deliveries;
