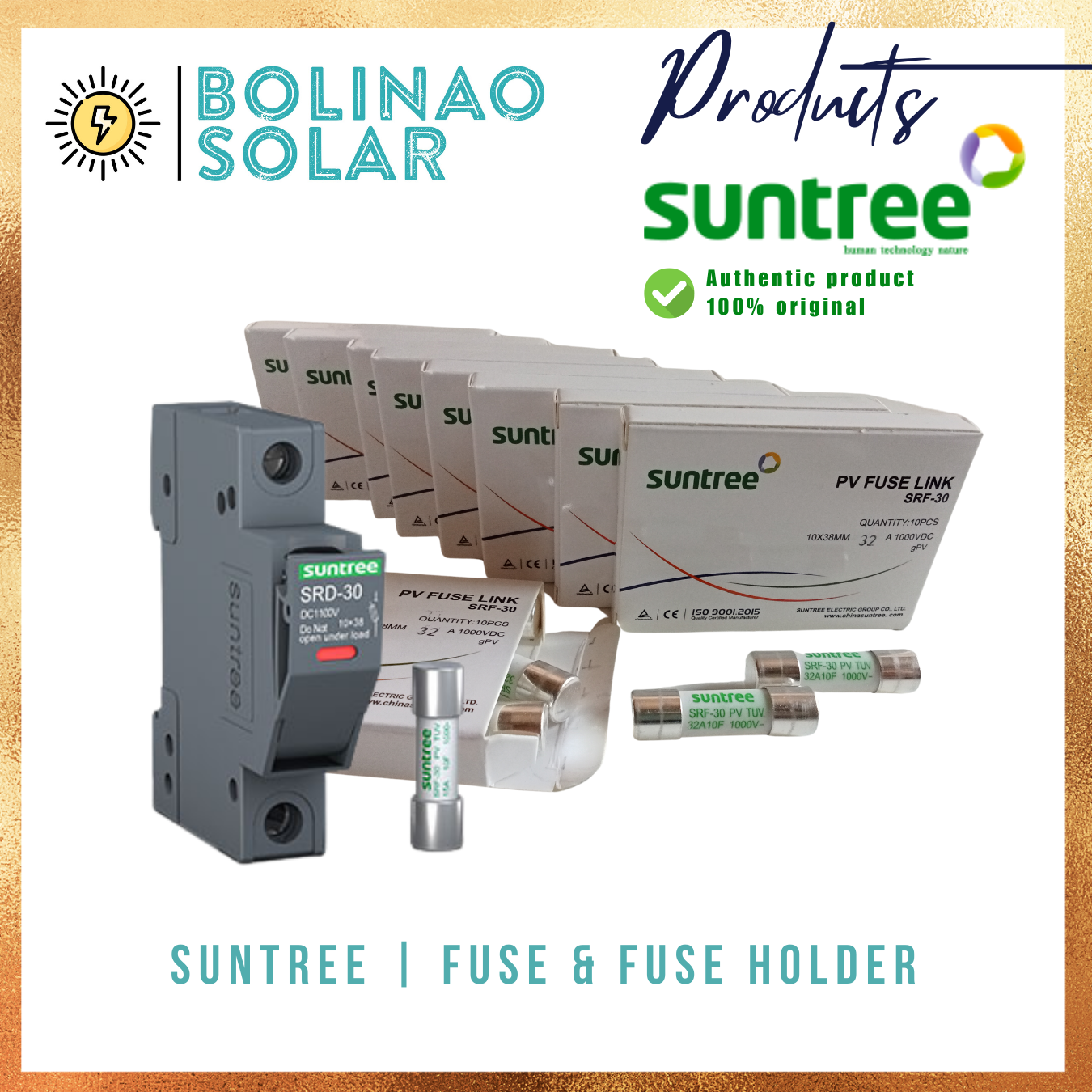

SUNTREE | Fuse Link and Fuse Holder Box

DC FUSE LINK & FUSE HOLDER SOLD SEPARATELY

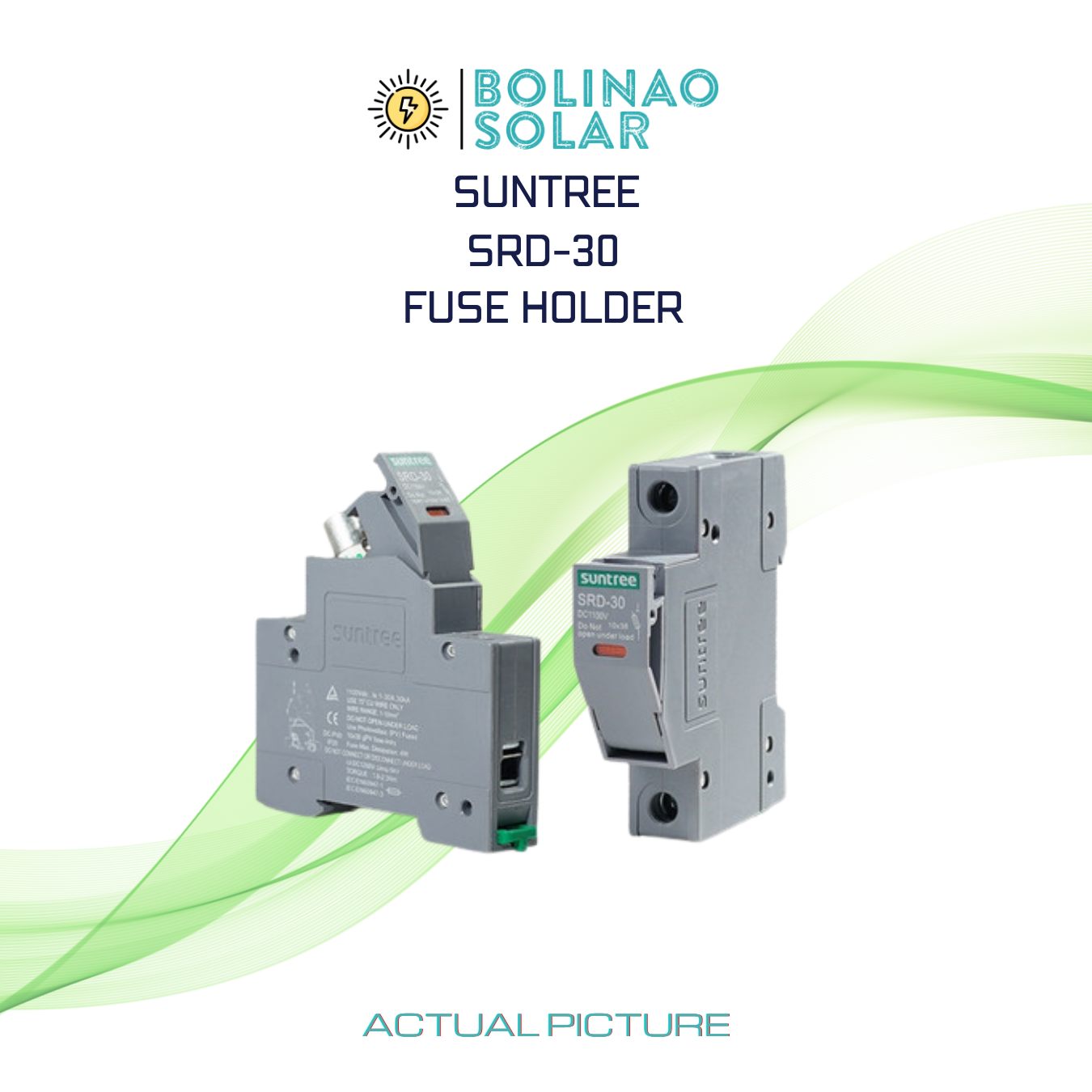

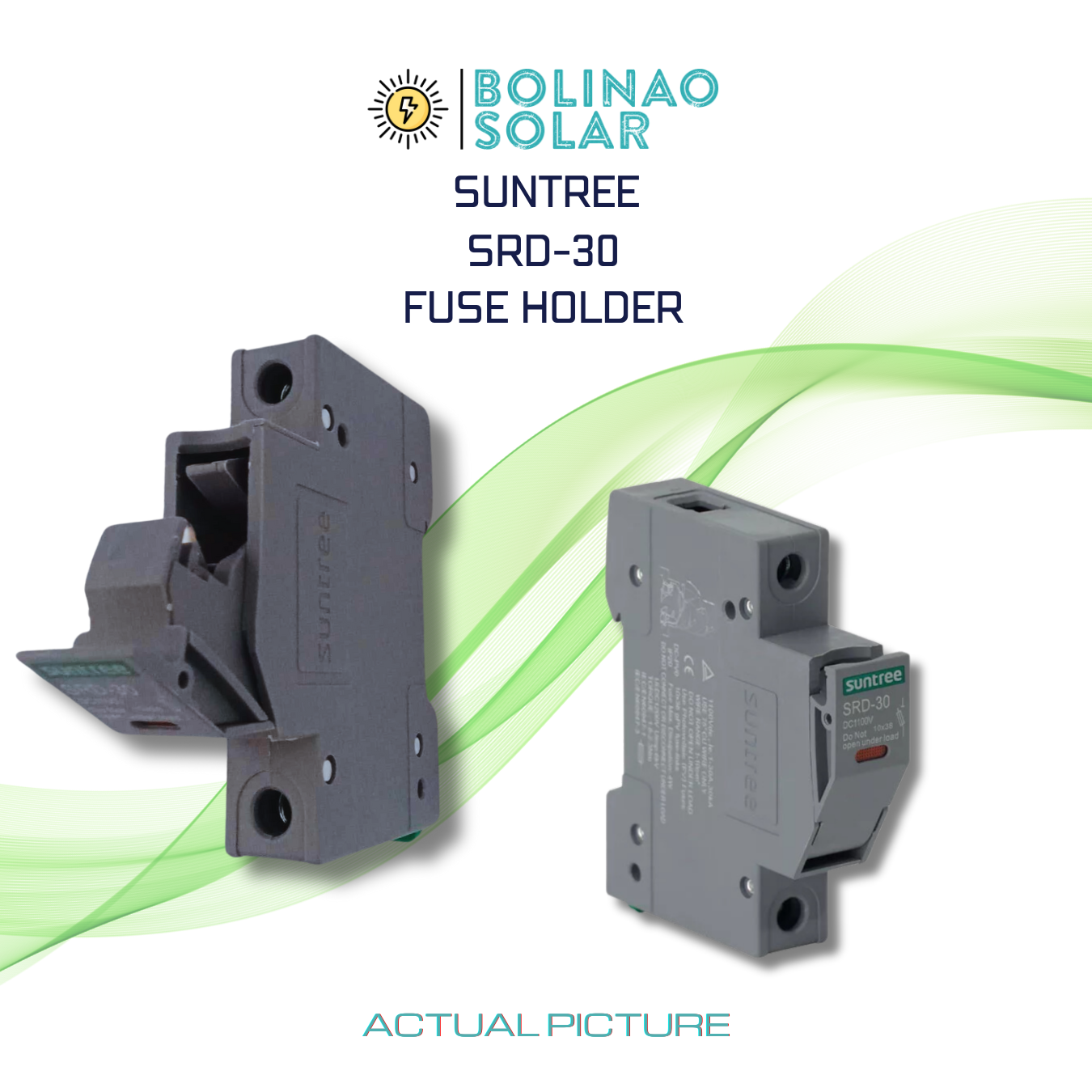

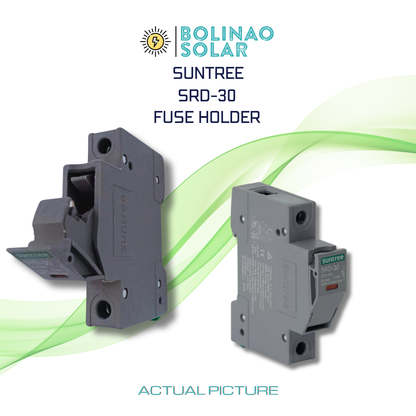

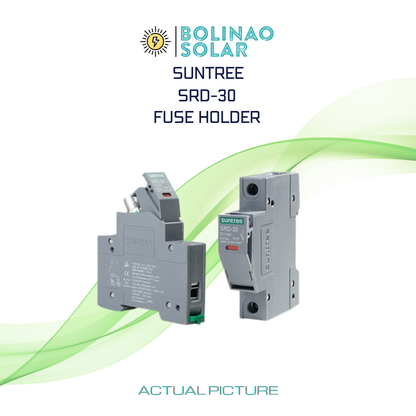

FUSER HOLDER: 1 POLE (can be use with fuse link)

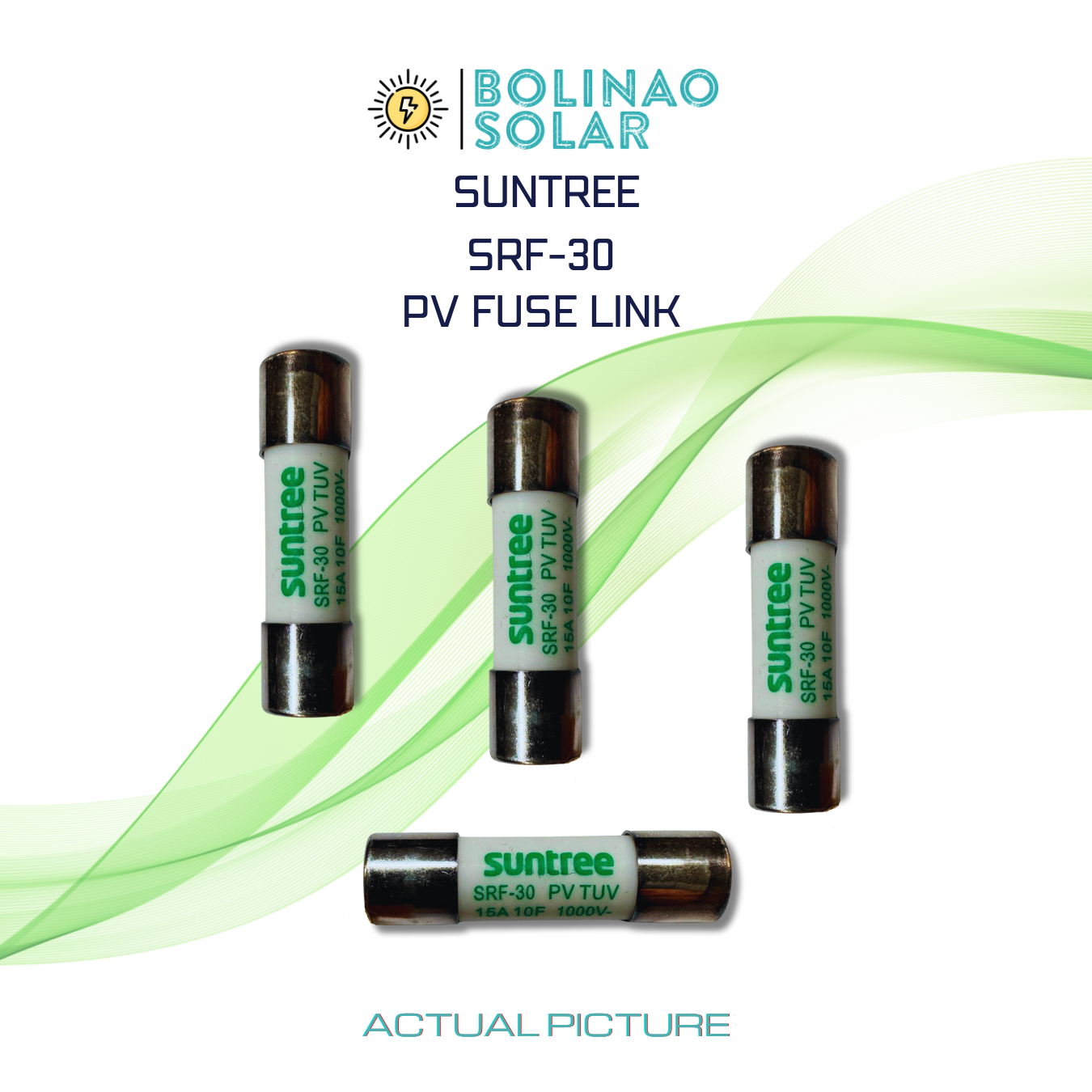

FUSE LINK: DC 1000V -- 15A, 16A, 20A, 25A, 30A, 32A

DC-PV0

IP grade: IP20

Usage: Low Voltage

Safety Standards: IEC

Material: Copper

Rated current: 15-32A

Reted voltage: DC 1000V

Pole: 1P

Certificate: TUV CE IEC

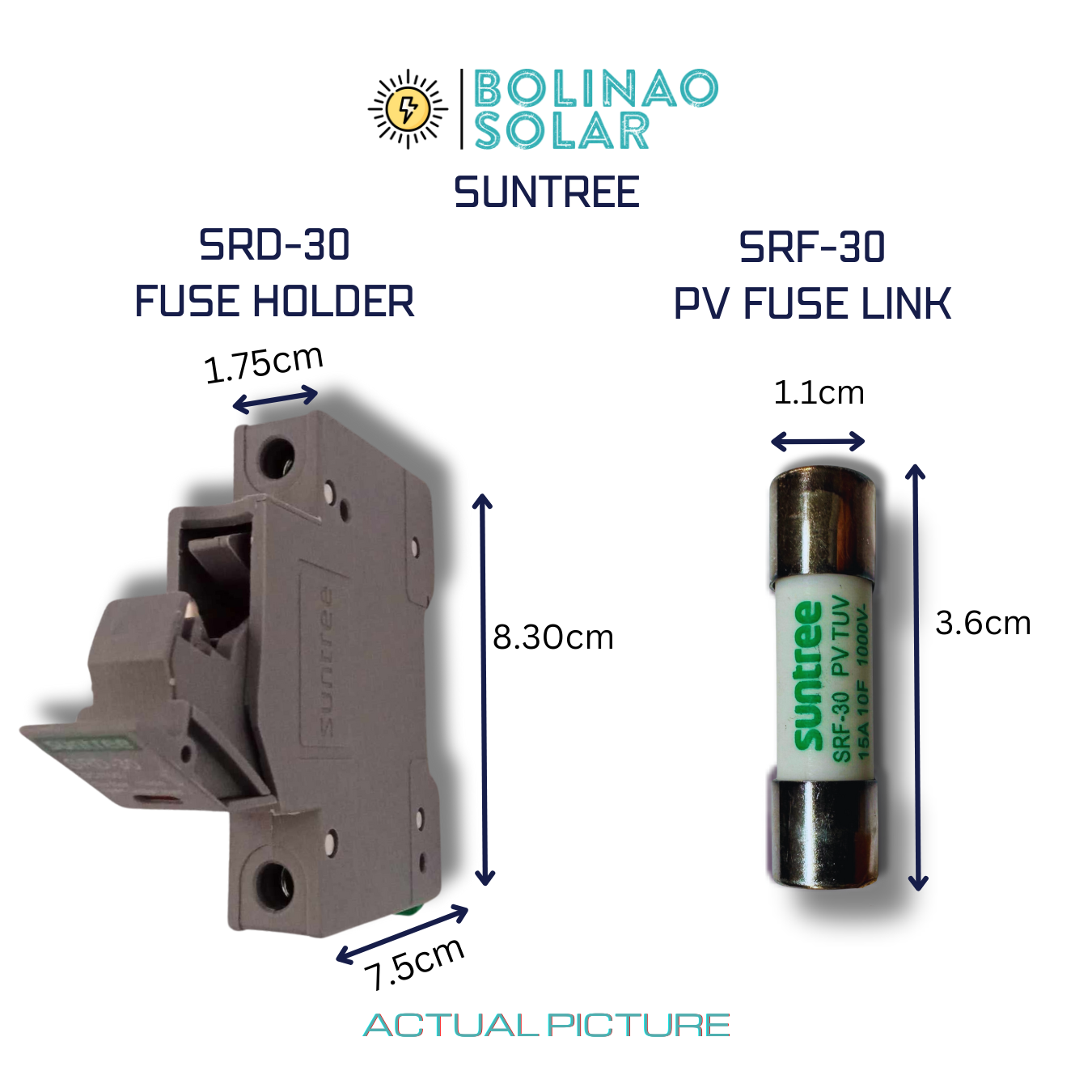

Size: 14X85MM

Application: Solar Power System

Type: Current Fuse

1100Vdc, le:30A, 30kA

USE 75 digress CU WIRE ONLY

WIRE RANGE: 1-10MM^2

Use Photovoltaic (PV) Fuses 10x38 gPV fuse-links

Fuse Max. Dissipation: 4W

Ui:DC1200V Uimp:6kV

TORQUE: 1 8-2.3Nm

IEC/EN6O947-1

IEC/EN6O947-3
