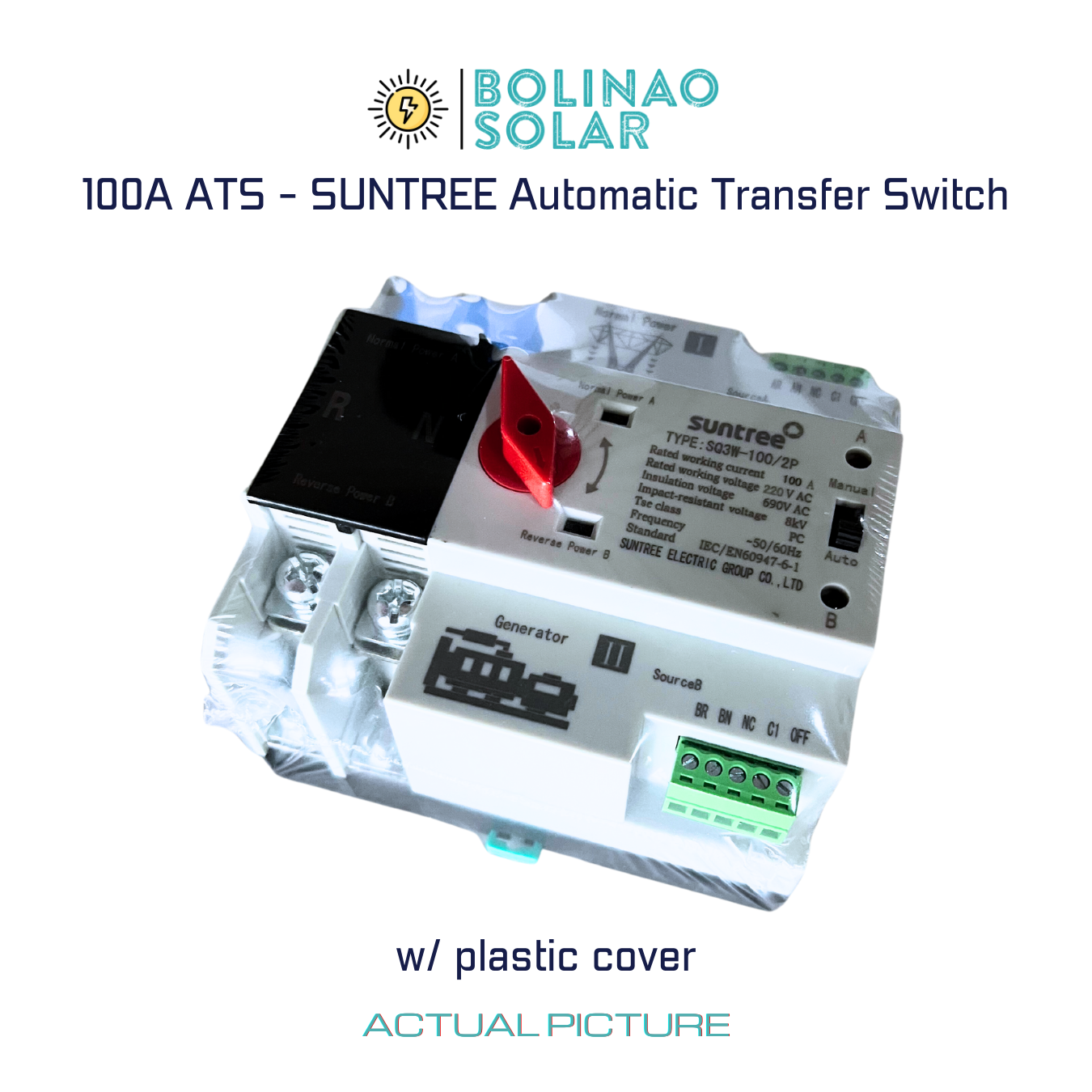

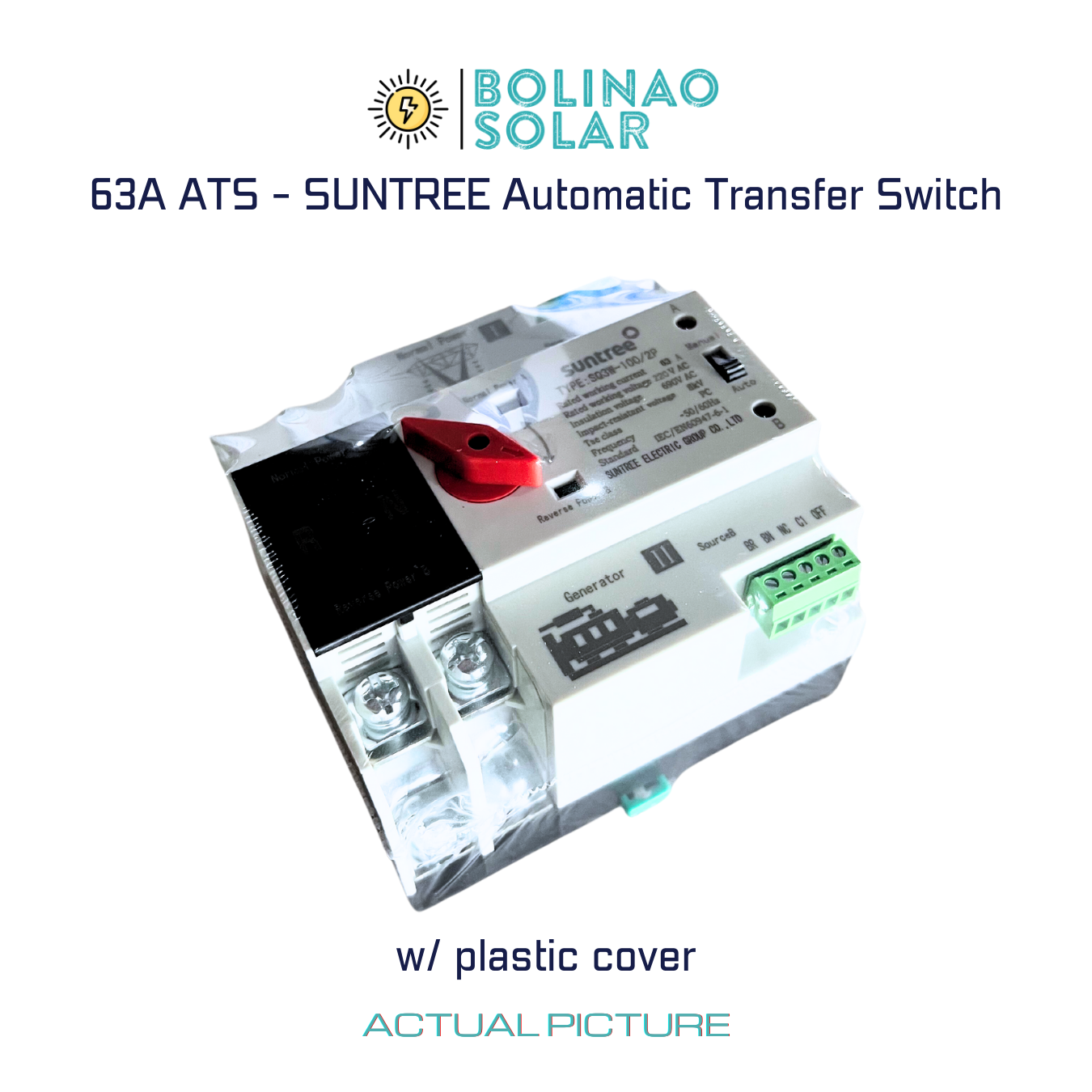

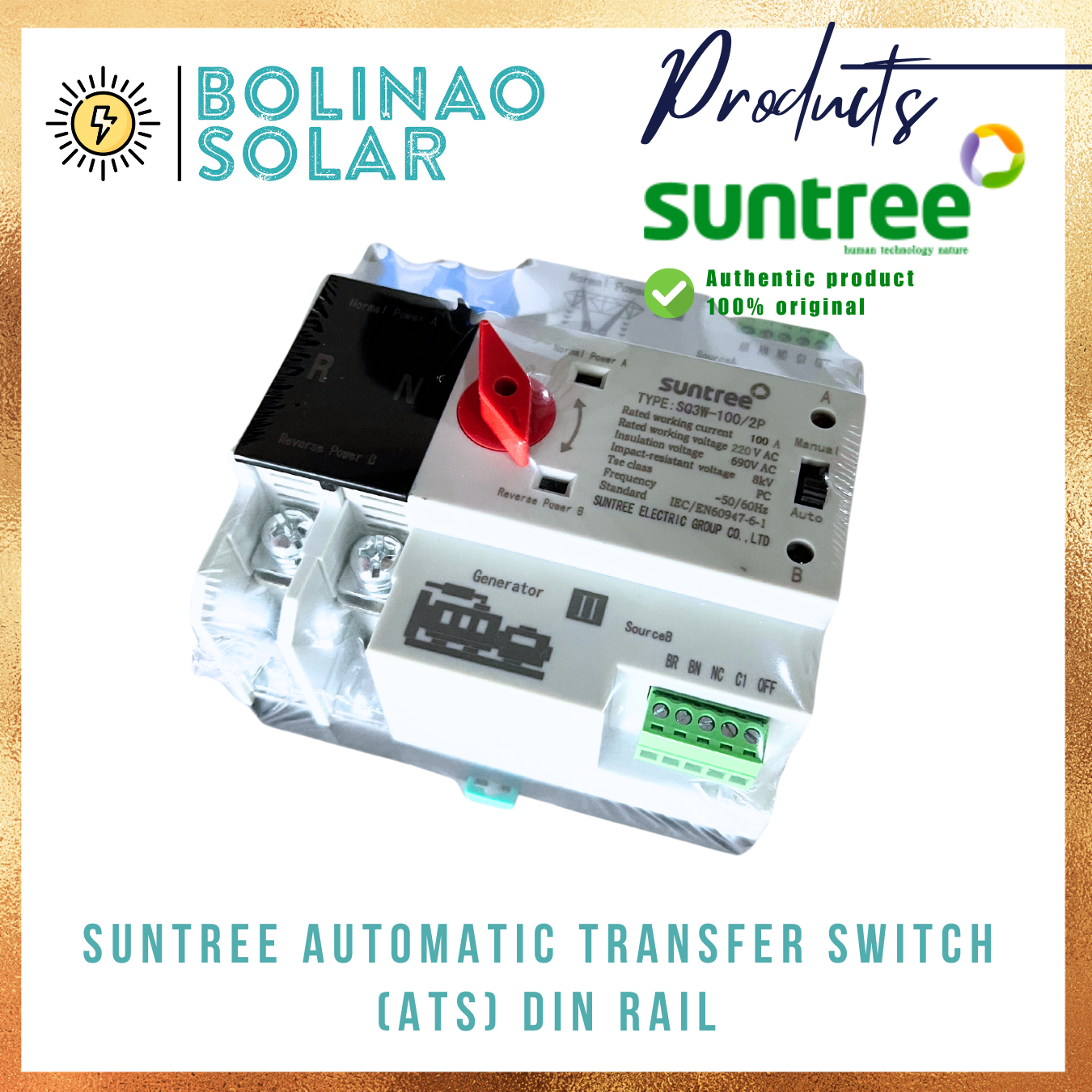

SUNTREE Dual-power Automatic Transfer Switch DIN Rail type (2 pole 63A/100A)

Product Specification:

Type: SQ3W

Specification current Ievel(A): 63/100

Rated operating voltage, Ue (V): AC230V

Rated insulating voltage Ui (V): AC 690V

Rated impulse withstand voltage (KV): 4KV

Rated short circuit making capacity Icm: 6KA

Rated short circuit breaking capacity Icn: 4.5KA

Service life: 5000 times

Electric equipment grade: CB Class

Controller: Type A(basic type)

Rated control supply voltage,Us(V): 230V 60Hz

Operating transfer time (no time delay): ≤3s
