Product Description:

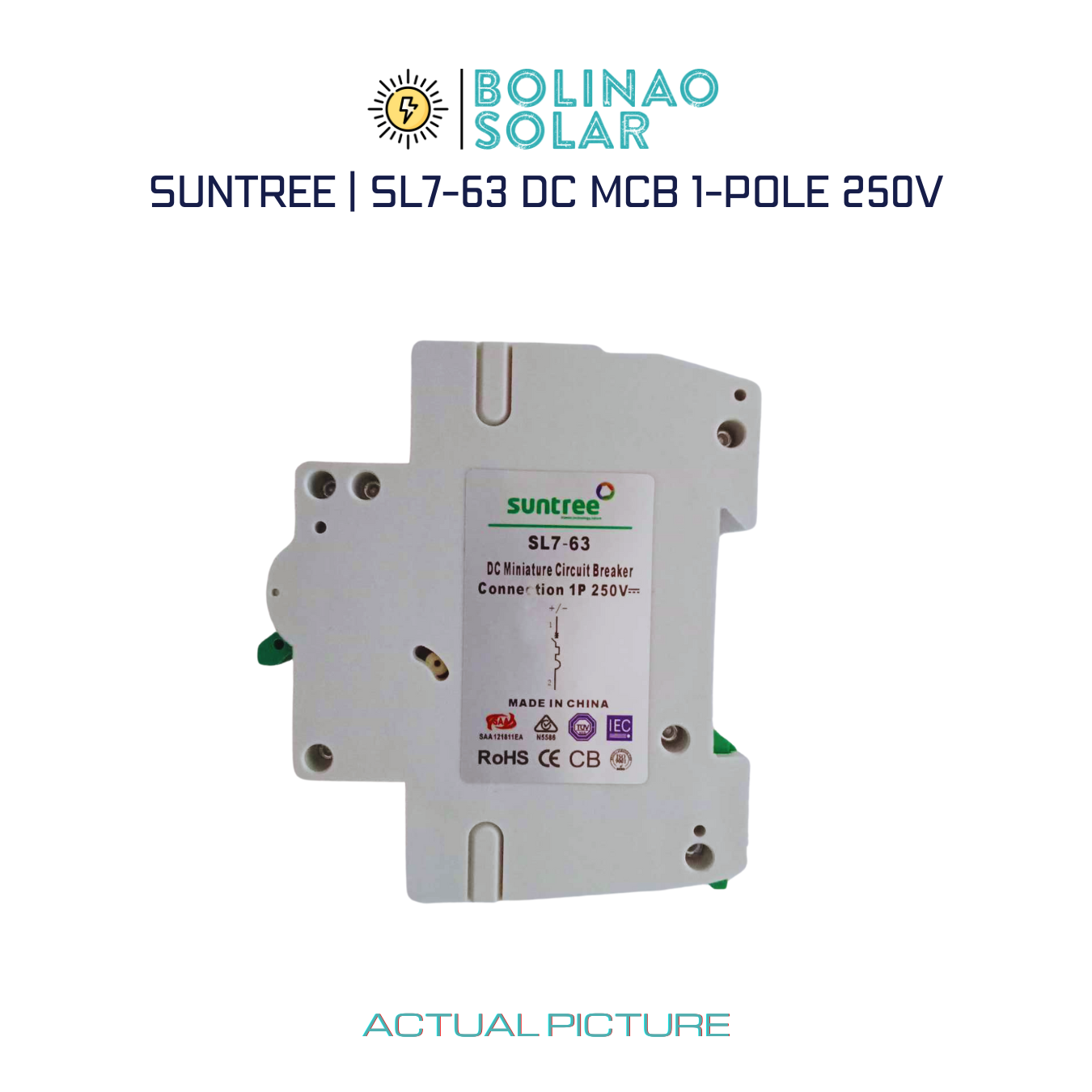

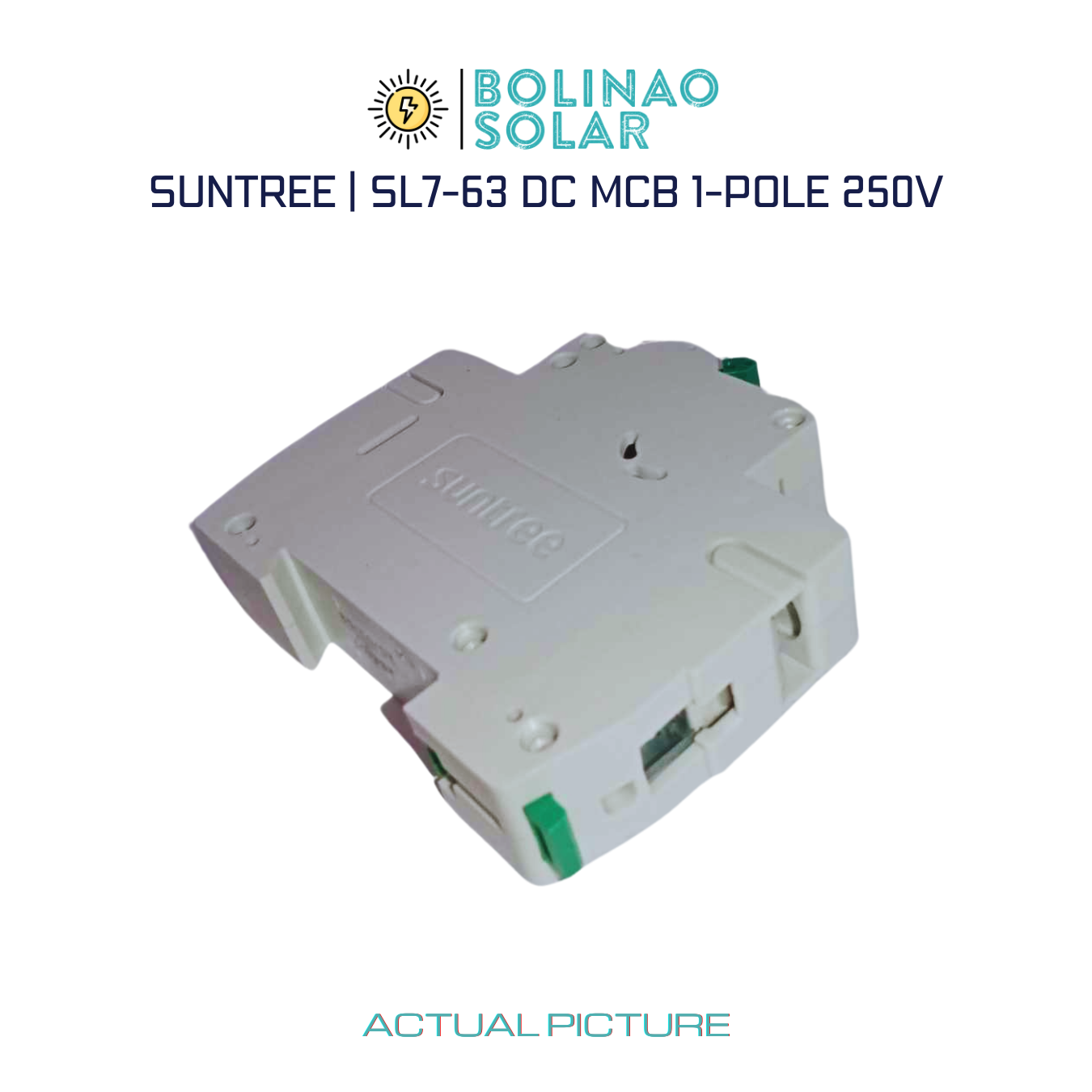

Model: SL7-63 DC250V

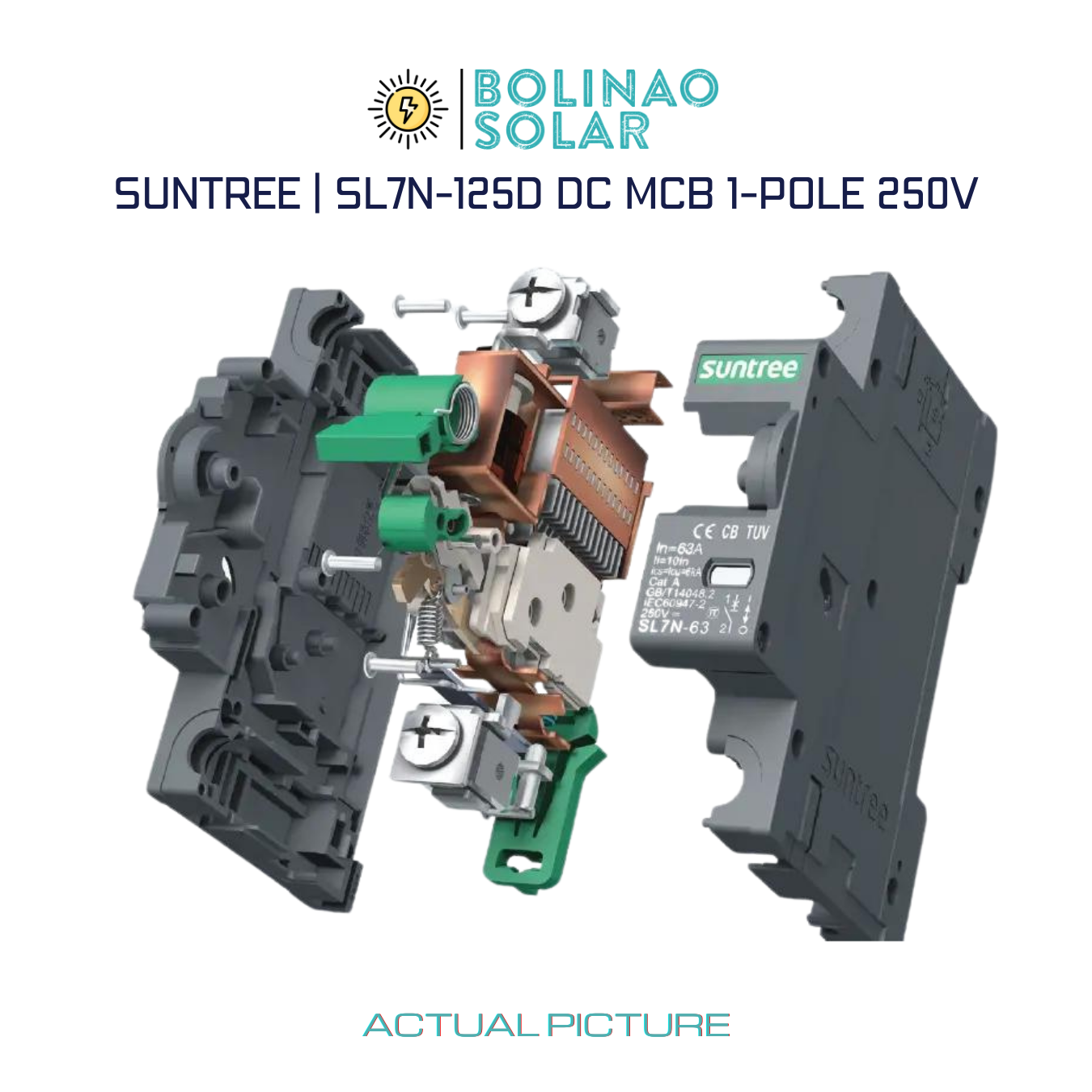

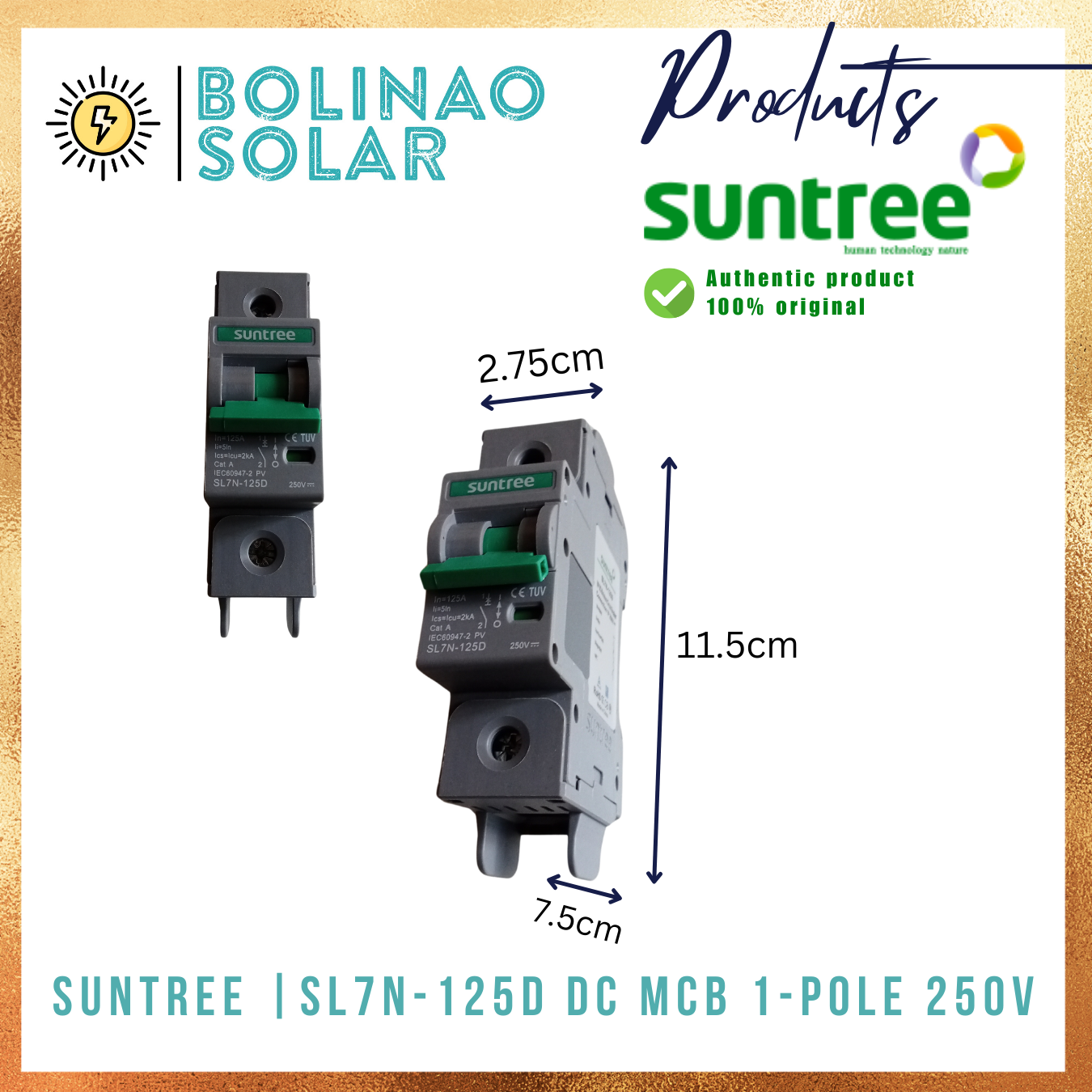

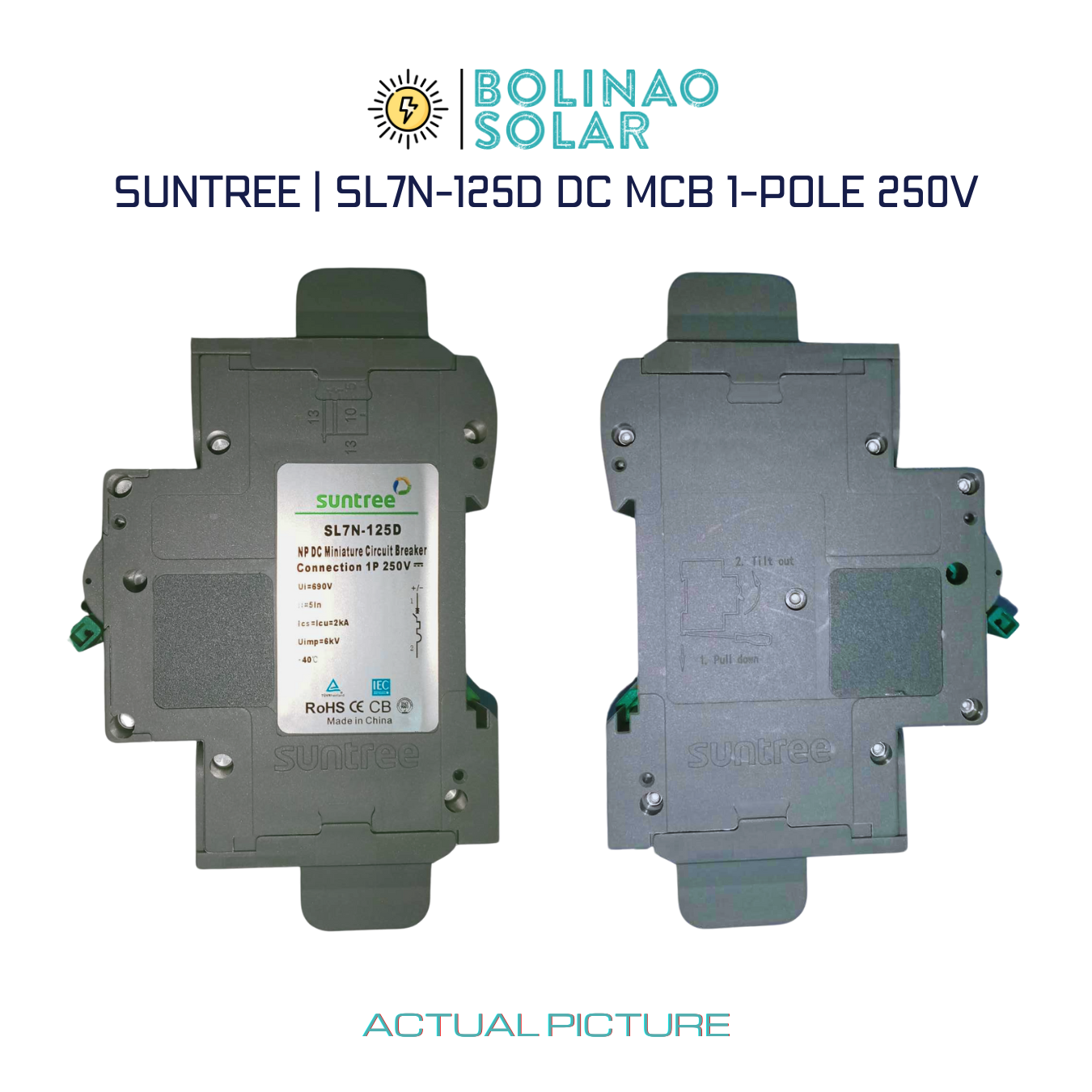

SL7N-125D DC250V
Electrical Performance
Poles: 1P
Ue Rated Operating Voltage: 1P: 250VDC
Rated Current In: 10A/16A/20A/25A/32A/63A
Rated Insulation Voltage Ui: 800VDC
Rated Impact Voltage Uimp: 4kV
Ultimate Breaking Capacity Icu: 6kA
Run breaking capacity Ics (%Icu): 75%
Curve Type: C
Trip Type: Thermal-Magnetic
Mechanical
Actual Average Value: 20000
Standard Value: 1500
Control and Indication
Shunt Release (SHT): Option
Undervoltage Release (UNT): Option
Auxiliary Contact (AX): Option
Alarm Contact (AL): Option

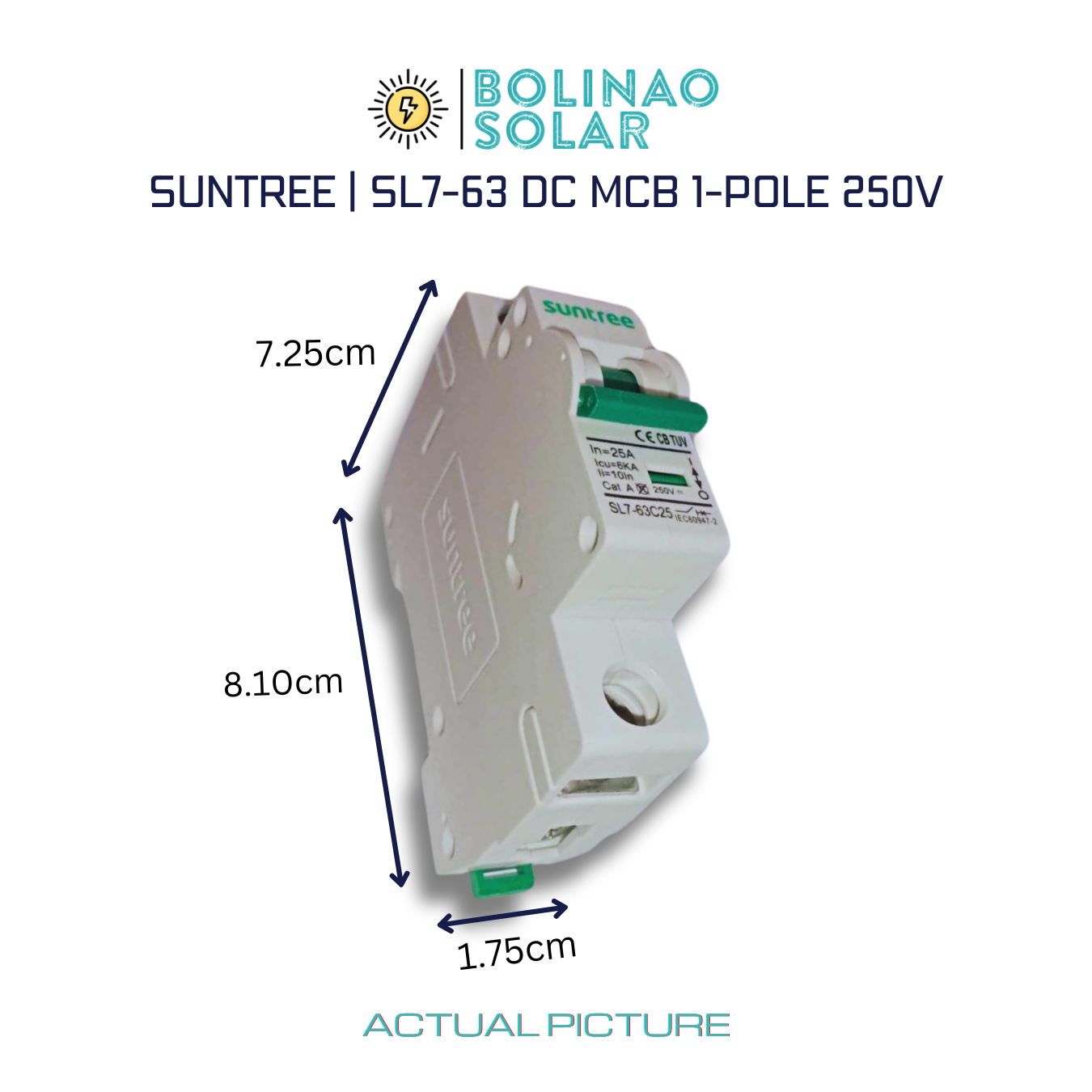

Dimensions (W×H×D): 7.25cm x 1.75cm x 8cm
Weight: 0.12 kg
Connection and Installation
Wiring Capacity: In ≤32A, 1~25mm², I≥40A, 10~35mm²
Ambient Temperature: -20°C ~ +70°C
Altitude: ≤2000
Relative Humidity: ≤95%
Pollution Level: 3
Installation Environment: No Obvious Shock and Vibration
Installation Category: Class III
Installation: DIN Standard Rail
Simple Consumer Reminders:
In case of users complying with usage, storage conditions and the product is sealed, if the product can not be normally used or damaged due to quality problems, within 12months since its purchasing date, the company is responsible for free repair or replacement. Beyond the warranty period, the product needs to be paid for repairs. But damages caused by the following circumstances are also need to be paid for repairs even during the warranty period:
1. Damage due to improper use, maintenance or storage;
2. Self-modification or improper maintenance;
3. Damage due to falling down or in installation process;
4. Force majeure like earthquake, fire, lightning, abnormal voltage and secondary disasters.
