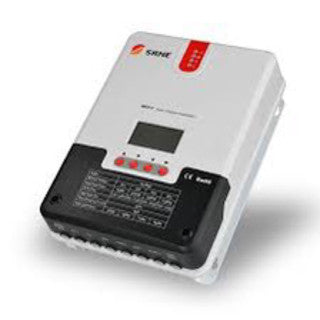

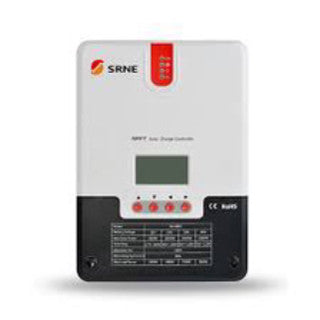

SRNE 60A MPPT Solar Charge Controller (12V/24V)

Place of Origin: Guangdong, China

Model Number: ML4860

Bran Name: SRNE

Type: MPPT

Application: Charger Controller, Solar Working Station

Max PV Power: 3200W

Certificate: ce&ROHS

Rated Current: 10A/20A/30A/40A/50A/60A

MPPT Efficiency: > 99%

Conversion Efficiency: ≤ 98%

Battery Type: Lithium Battery

System Voltage: 12V; 24V; 36V; 48V Auto

No-load Loss: 0.7W to 1.2W

Max. Solar Power: 800W/12V; 1,600W/24V; 2,400W/36V; 3,200W/48V

Solar Vmp: 17V - 120V (12V); 36V - 120V (24V); 55V - 120V (36V); 70V - 120V (48V)

Max. Solar Input Volate: 150V (25°C); 145V (-25°C)

Max: Charging Current: 60A

Charge Mode: MPPT Maximum Power Point Tracking

Max. Load Power: 240W (12V); 480W (24V); 720W (36V); 960W (48V)

Work Time (h): 24h

Protection Function: Reverse + Short Circuit Protection

Display: LCD + LED

Protection: Short Circuit

Water Proof Level: IP32

Communication Method: RS232 RS485

Temperature Compensation Factor: -3mv/°C/2V (default)

Operating Temperature: -35°C to +45°C
