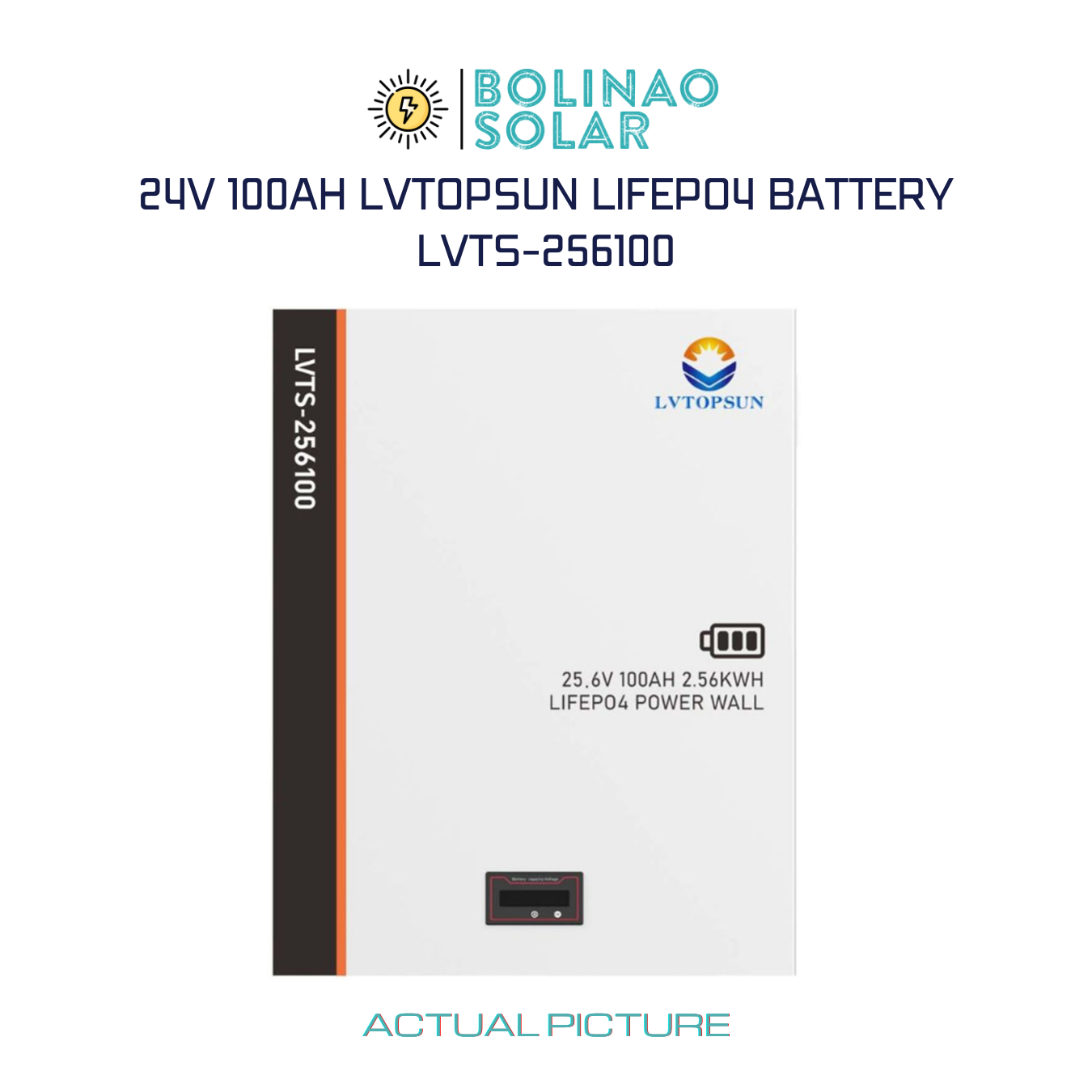

LVTOPSUN | LifePo4 Power Wall 25.6V 100Ah 2.56KWH

Technical Specifications

Nominal Voltage: 25.6V

Nominal Capacity: 100Ah

Nominal Energy: 2560Wh

Charge Voltage: 28.08V

Charge Current: 50A

Discharge Voltage Range: 22.8V ~ 28.08V

Discharge Current: 100A

Communication Mode:

Working Temperature:

- Charge: 0°C ~ 55°C

- Discharge: -20°C ~ 55°C

Storage Temperature:

- Short Term (within 1 month): -10°C ~ 45°C

- Long Term (within 1 year): 0°C ~ 35°C

Storage Humidity: <95% RH

Cell Type: LiFePO4, Lithium Iron Phosphate

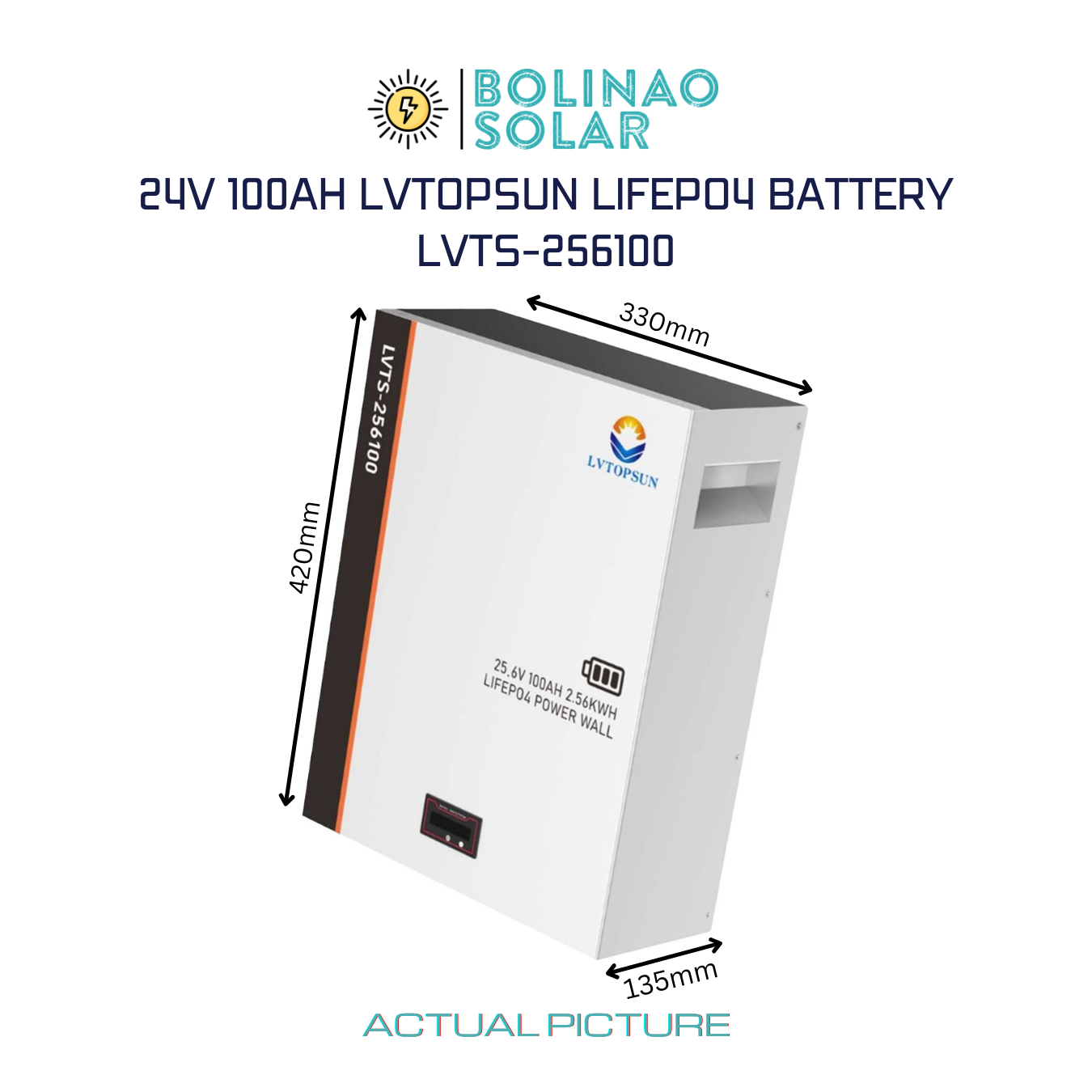

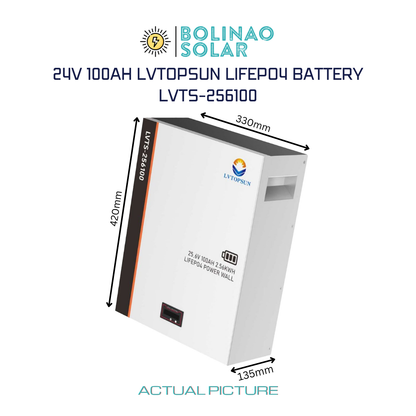

Size: H420*W330*D135(mm)

Weight: 25.8KG (Wall Bracket Included)

IP Level: IP20

Cycle Life = 6000 Cycles @ 80% DoD/ 25% RH/ 25 C/ 0.5C, 60% EOL

Scalability = Max 2 Batteries in Series / Max 4 Batteries in Parallel

Durable and Long-Lasting:

Built to withstand the test of time, the LVTOPSUN LiFePO4 Battery boasts a robust construction, ensuring durability and longevity. Count on it for consistent and reliable performance over the long term.

xxCompact Powerhouse:xx

The LVTOPSUN LiFePO4 Battery packs a punch with its compact yet powerful design, delivering 2.56KWh of reliable energy in a sleek and efficient package.

Advanced Lithium Iron Phosphate Technology:

Powered by LiFePO4 technology, this battery ensures exceptional performance, longevity, and enhanced safety. Experience the benefits of cutting-edge energy storage solutions for your residential or commercial needs.

Optimal Capacity:

With a capacity of 100Ah, the LVTOPSUN LiFePO4 Battery provides a reliable and consistent energy supply, catering to a variety of applications with ease.

Efficient Charging and Discharging:

Benefit from efficient charging and discharging cycles, optimizing the energy utilization of the battery. Experience a seamless and uninterrupted power flow for your devices and appliances.

Versatile Application:

Designed for versatility, this LiFePO4 battery is suitable for various applications, including solar energy storage, RVs, marine applications, and off-grid power systems. Enjoy the flexibility to power your ventures efficiently.

What's in the box

1x LVTOPSUN LifePO4 Battery 25.6V 100AH 2.56KWH

1x Wall Mount Bracket

4x Rawl Bolts

1x Earth Cable
