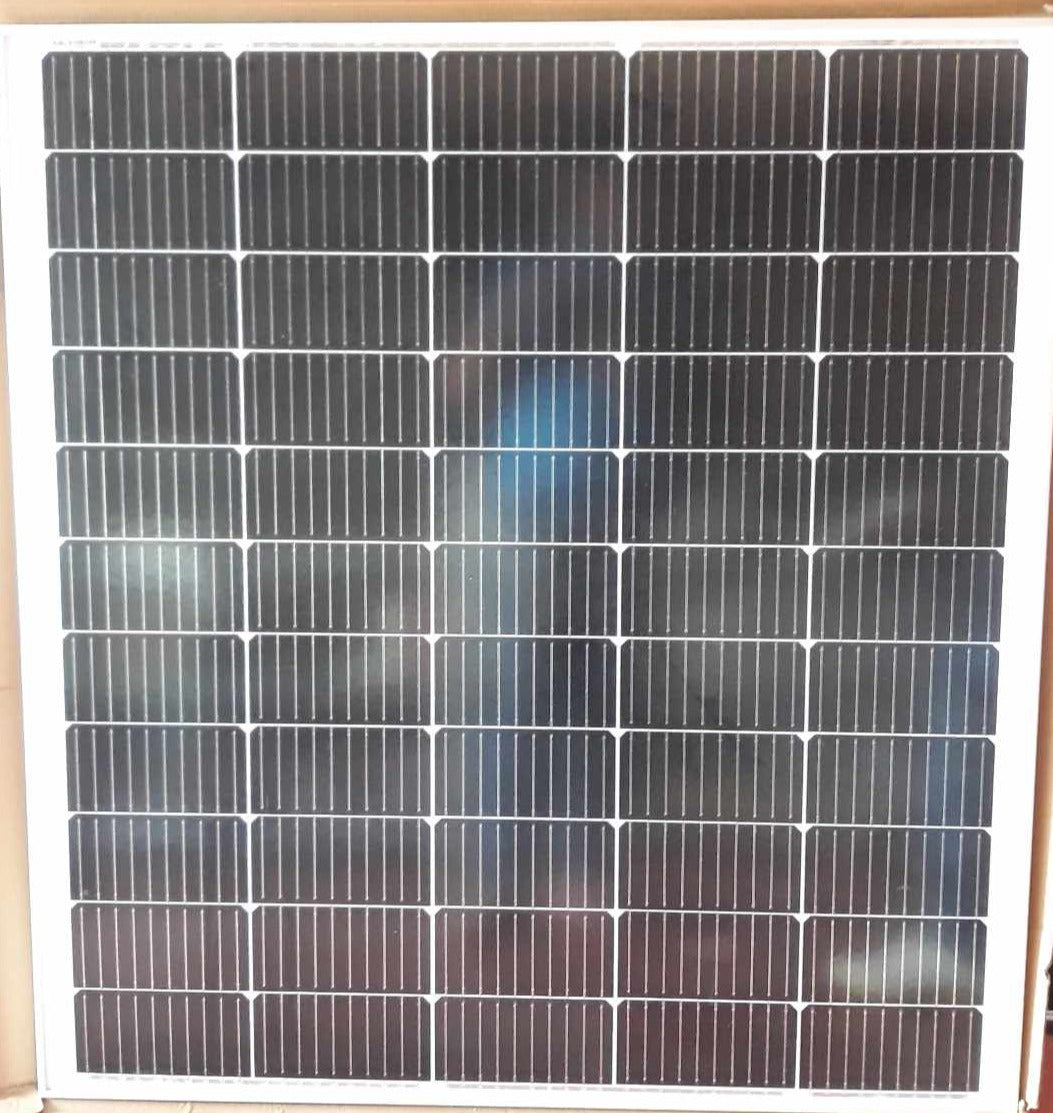

SolarHomes 200W Solar Panel 33V

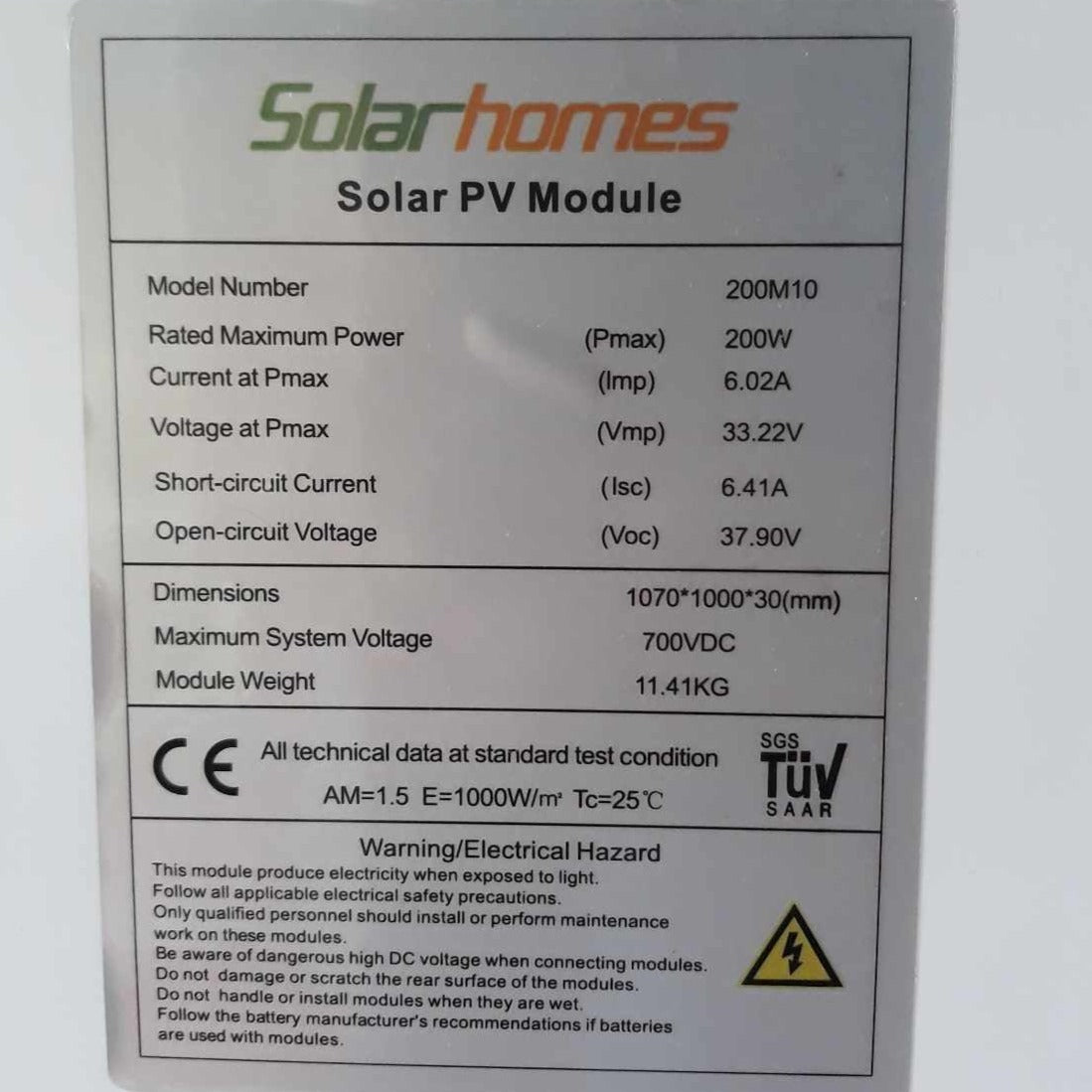

Product Information

Model Number: 200M10
Rated Maximum Power (Pmax): 200W
Current at Pmax (Imp): 6.02A
Voltage at Pmax (Vmp): 33.22V
Short-Circuit Current (Isc): 6.41A
Open-Circuit Voltage (Voc): 37.90V

Dimensions: 1070 x 1000 x 30mm
Maximum System Voltage: 700VDC
Module Weight: 11.41KG

All technical data at standard test condition
AM = 1.5 E = 1000W/sq. m Tc = 25°C

Warning/Electrical Hazard
This module produce electricity when exposed to light.
Follow all applicable electrical safety precautions.
Only qualified personnel should install or perform maintenance work on these modules.
Do not damage or scratch the rear surface of the modules.
Do not handle or install modules when they are wet.
Follow th battery manufacturer's recommendations if batteries are used with modules.
