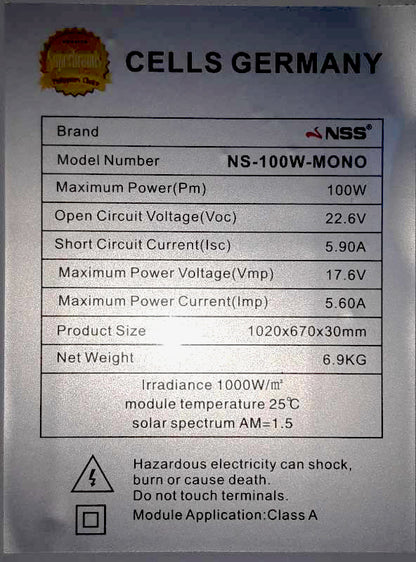

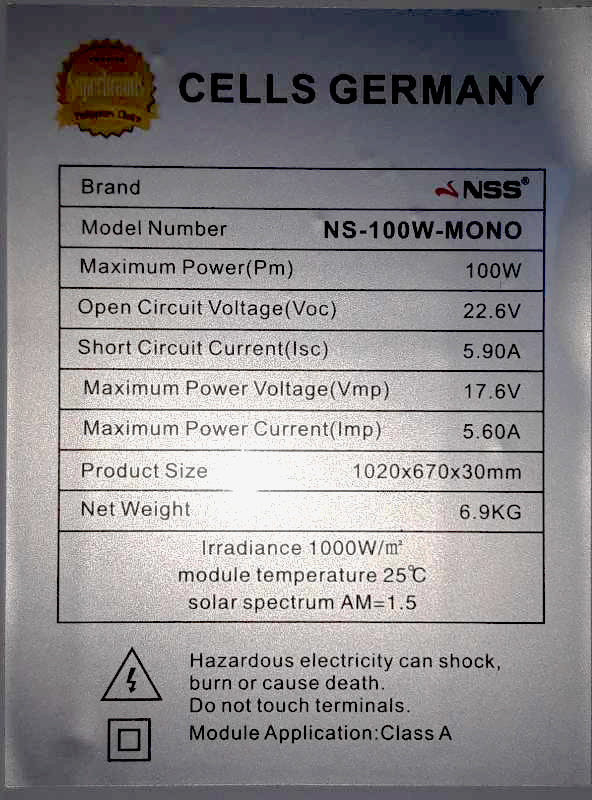

NSS 100W Solar Panel CELLS GERMANY

Product Information

Brand: NSS

Model Number: NS-100W-MONO

Maximum Power (Pm): 100W

Open Circuit Voltage (Voc): 22.6V

Short Circuit Current (Isc): 5.90A

Maximum Power Voltage (Vmp): 17.6V

Maximum Power Current (Imp): 5.60A

Product Size: 1020 x 670 x 30mm

Net Weight: 6.9Kg

Irradiance 1000W/sq. m

Module Temperature: 25°C

Solar Spectrum AM = 1.5

Warning/Electrical Hazard

Hazardous electricity can shock, burn or cause of death.

Do not touch terminals.

Module Application: Class A
